Overview
VSYS 2CH DVRs are designed especially for motorcycles. Aimed to simplify the use of cameras, for security, and pleasure. Compared to sports action camera, VSYS professional dash cameras are equipped with dual front & rear sync recording cameras, allows you to capture the unexpected accident evidence, and amazing travel scenery.
Specification
Packing List
Main Unit x 1
Front Camera with 2.0m extension cable x 1
Rear Camera with 2.0m extension cable x 1
ACC Power Cable x 1
USB Test Cable x 1
Mounting Bracket x 1
Wired Controller x 1
Especially Designed for Bikers
2 channel separated cameras with each standard 2.0 meters extension cable for front and rear view recording. Good stability and friendly operation will let you enjoy the ride.
Hard-Wired Connection
It’s hard-wired to the bike. The main unit is mounted under the seat. The separated small camera is fixed with double-sided foam tape and can be fastened with screws. It’s easy for hidden installation without being noticed which is different from the helmet or action camera. Horizontal and vertical angles of the lens can be easily adjusted to obtain a better viewing angle.
High Resolution & Night Vision
Both D6RL and D6WL record in front 1920 x1080 and rear 1920 x1080 resolution. And both models feature night vision, which can enhance details in dark surroundings, capture incredible images in low-light environments.
Built-in WiFi & Easy Video Management
Connect to the built-in Wi-Fi and open the ‘WiFi Camera’ app to seamlessly view, playback, configure, download, or share incredible HD video wirelessly on your mobile device. APP supports both iOS & Android systems.
Waterproof Protection
Both cameras have been related to IP67 Waterproof resistance, plus IP65 waterproof design for cables, wired remote, and other accessories. Whether it’s rainy or dusty, it works steadily, recording every moment of your journey.
※ Please note the D6WL main body is waterproof while the D6RL main body is NOT waterproof
Waterproof Wired Controller
1) Show the camera status.
2) Press any one of the buttons to save 2 photos and a video file named “key 001 002 003….” which won’t be overwritten.
3) Long press to Reset WiF.
Uninterruptible Power Supply
Power through the motorcycle’s battery never needs to be charged. No need to worry about the charging problem at all.
Automatic Video Recording
The DVR starts automatically with the key ignition and turns off once the bike is not being used.
● Make sure the yellow wire is connected to an ACC power source, such as headlight, tail light, horn, and others that are associated with the ignition.
Up to 256GB Micro SD Card Support

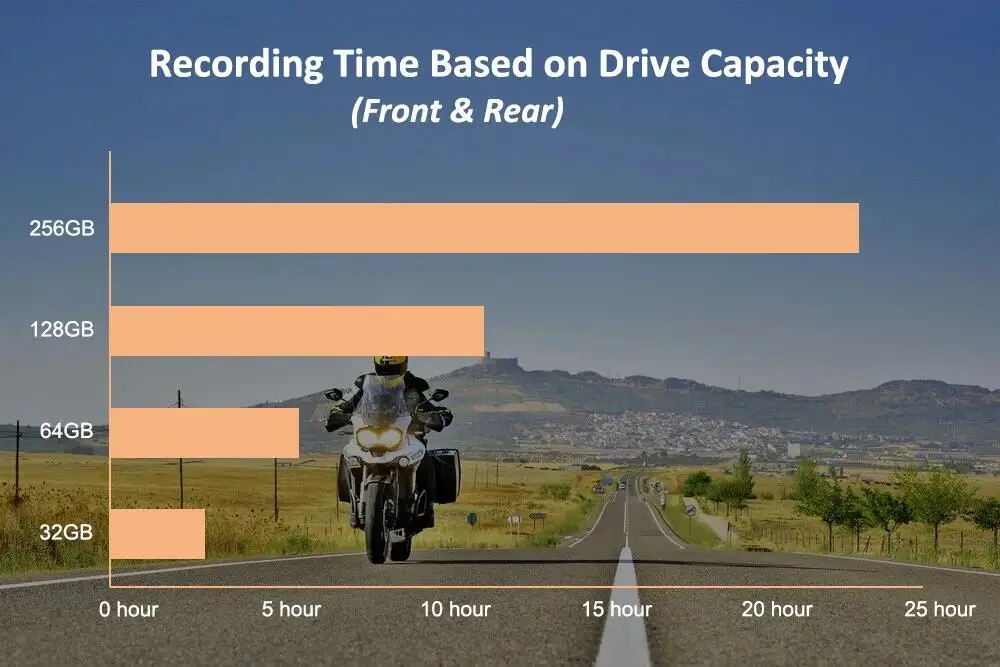

Support a maximum 256GB micro SD card (TF card, NOT included) which allows up to 23 hours of recording before overwriting.
Protect Video Evidence
The dash cam will automatically enter REC Mode after powered on, and it can automatically capture unexpected driving accidents and saves video footage of the collision. Your safety and legal rights are always under protection.
You can also press the emergency button of wired remote to manually activate emergency recording mode to lock the video file you want to lock.
● Video files recorded in emergency mode(G-sensor activation & manual activation) are protected from being overwritten.
Seamless Loop Recording
The most important thing about a dashboard camera is saving all of the critical footage for later viewing. While the memory card has limited capacity, we have designed the loop recording function to overwrite the oldest file continuously when the SD card is full, so that your device is constantly recording and you never lose the most recent footage.
Installation Showcase
